Modern automatic transmissions are marvels of engineering with many hidden parts working together. One crucial but often misunderstood component is the valve body. If you’ve heard a mechanic mention a “bad valve body” or are simply curious about how your car shifts gears on its own, understanding this part can demystify a lot. The valve body is essentially the hydraulic control center of an automatic transmission — often nicknamed the “brain” of the gearbox because it controls fluid flow for gear changes. It’s not something most drivers see, but its role is vital for smooth driving. In this article, we’ll break down what the valve body is, how it works, and why it’s important for your vehicle’s performance.
The Valve Body: Automatic Transmission’s Control Center

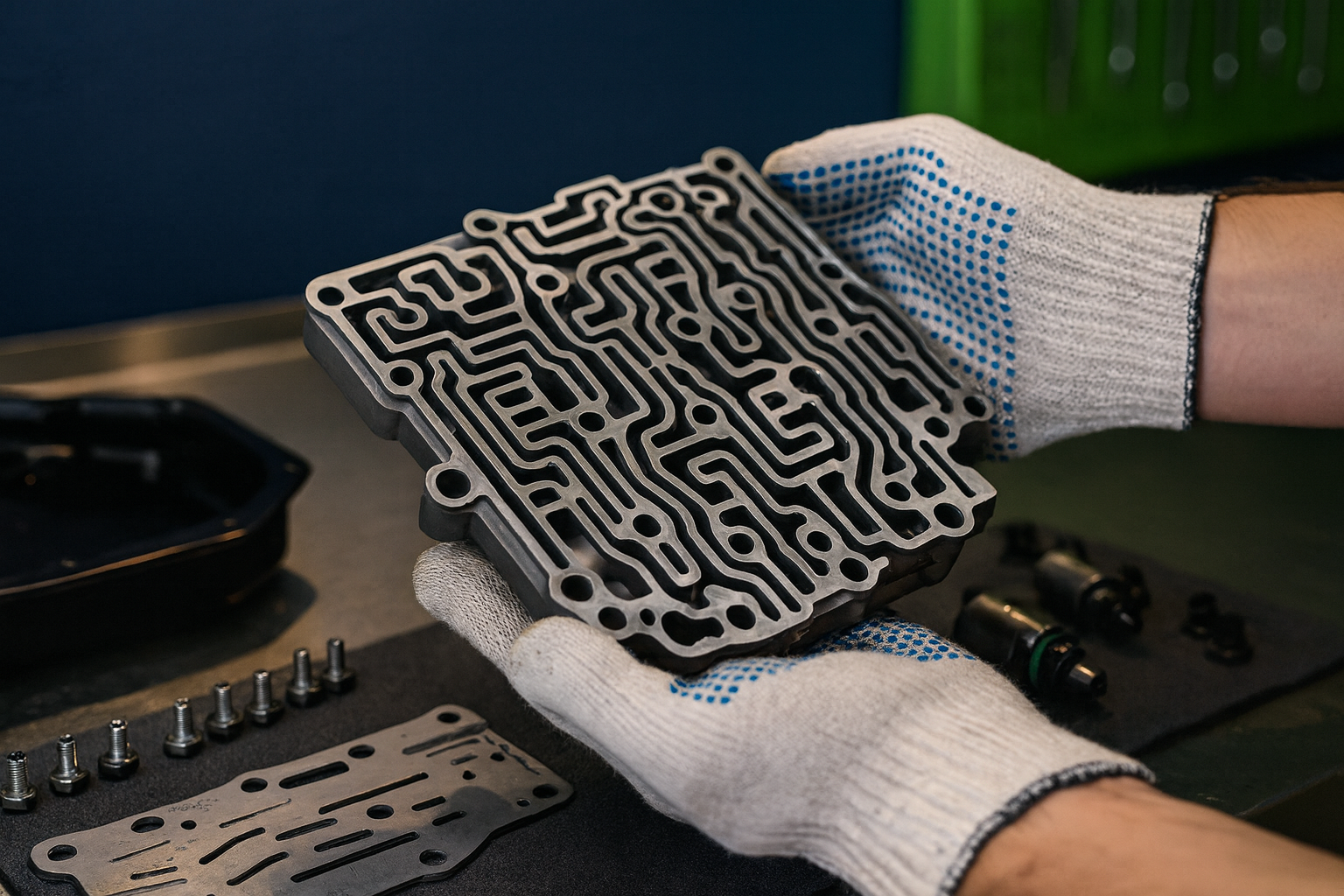

The transmission valve body is a major component inside an automatic transmission. It’s a solid metal block (usually aluminum) filled with a maze of channels, valves, and passageways. These internal passages direct transmission fluid (a specialized oil under high pressure) to various parts of the transmission. By opening and closing different valves at the right time, the valve body controls which gear the transmission is in. In simple terms, it’s like a traffic controller for fluid: it routes the fluid to engage the correct gears when needed.
This component is unique to automatic transmissions. Manual transmissions don’t have a valve body — instead, the driver manually changes gears with a clutch and gear shifter. According to CarParts.com, an automotive parts retailer and information resource, “The transmission valve body is a major transmission component that diverts transmission fluid to the appropriate channels and areas”. In an automatic car, you don’t have to shift gears yourself; the valve body and related parts handle it for you. It is typically located inside the transmission housing, bolted into the lower section (usually inside the transmission oil pan at the bottom of the case). This keeps it submerged in fluid for lubrication and operation.
Not only is the valve body housed in fluid, but it’s also filled with multiple spring-loaded valves and, in modern cars, electronic solenoids (electromagnetic valves). All these small parts work together to manage fluid flow. The design often looks like a complex puzzle — indeed, the network of channels is sometimes called a “maze” or “worm tracks” due to its intricate appearance. Each pathway and valve corresponds to a particular gear or function. When you put your car in Drive or Reverse, or as the car gains speed, the valve body ensures the right passages open so fluid pressure goes to the appropriate clutches or bands that change the gears.
One way to understand the valve body is to compare how gear shifting happens in manual vs. automatic transmissions:
| Manual Transmission (No Valve Body) | Automatic Transmission (Has Valve Body) |
|---|---|
| Driver presses a clutch pedal and moves a gear shifter to change gears manually. | Car shifts gears automatically using hydraulic pressure controlled by the valve body (no clutch pedal needed). |
| Gear changes are direct, mechanical — the driver’s actions engage/disengage gears. | Gear changes are managed by fluid circuits — the valve body routes fluid to engage the correct gear internals. |
| No automatic fluid pathways for shifting; relies on driver skill and timing. | Uses a torque converter (fluid coupling) instead of a clutch, and valves/solenoids time the shifts based on driving conditions. |
| Simpler control system (gears linked by levers/cables to the shifter). | More complex control system (network of valves, fluid channels, and sensors/computers coordinating shifts). |
In summary, the valve body acts as the control center of an automatic transmission, doing the work that a driver does in a manual. In a manual, you decide when to change gear; in an automatic, the valve body (with help from the transmission’s computer) makes that decision for you. This difference is why automatics are so convenient — the car shifts on its own, and the valve body is central to that ability. It ensures that whether you gently accelerate or need a quick burst of speed, the transmission shifts smoothly into the appropriate gear without you having to think about it.
How Does the Valve Body Work?
How it shifts gears on its own: Inside the valve body is a series of spring-loaded valves and passages that fluid flows through. When your car is driving, transmission fluid (also called ATF) is pumped through the valve body’s channels under pressure. Depending on factors like vehicle speed, engine load, and throttle position, different valves will open or close. This sends fluid into specific clutches or bands in the transmission, which then engage the gear corresponding to that fluid path. For example, as you accelerate, at a certain point the valve body will redirect fluid to upshift to the next gear; when you slow down, it will downshift accordingly. All of this happens seamlessly so you usually don’t notice the complex choreography happening inside the transmission.
Hydraulic circuits and solenoids: In older automatic transmissions, the valve body was purely mechanical-hydraulic. It used devices like a governor (which senses vehicle speed) and a throttle valve (senses engine load or throttle position) to modulate fluid pressure. These forces acted on the valves in the valve body to decide when to shift. Modern automatics, however, add electronics into the mix. They have solenoids (electrically controlled valves) mounted in the valve body. A computer called the Transmission Control Module (TCM) monitors sensors (speed, throttle, etc.) and energizes the solenoids to open/close the right valves at the right time. This electronic control allows for more precise and efficient shifting. In essence, the car’s computer tells the valve body “it’s time to shift now,” and the valve body executes that command by routing fluid to engage the next gear.
Key elements of how a valve body works
-
Fluid Routing: The valve body channels pressurized ATF through various passages. Each passage leads to a clutch pack or band that corresponds to a gear. By filling a passage with fluid, it engages that gear.
-
Valves Operation: Many small spool valves inside slide open or shut to block or allow fluid flow. They react to fluid pressures or solenoid activation. For instance, a shift valve moves when pressure conditions indicate it’s time for the next gear, opening a path for fluid to move into that gear’s clutch.
-
Solenoids and Sensors: In computer-controlled transmissions, solenoids act as on/off gates for fluid. The TCM reads inputs (like speed or load) and then activates solenoids in the valve body to trigger gear changes at the appropriate moments. This is why modern cars adjust shifting so smoothly to your driving — the computer and valve body work together closely.
-
Torque Converter Interaction: The valve body also manages fluid flow to the torque converter lockup clutch. At higher speeds, it can send fluid to lock the torque converter (like a direct coupling) for better efficiency. This improves fuel economy and reduces slippage once cruising, and again, the valve body controls that via a valve or solenoid.
-
Safety and Adjustments: The design ensures that if one part fails or pressure is off, the transmission may go into a safe mode (like staying in one gear) to prevent damage. Some valve bodies have accumulators (small piston-dampers) to smooth out the fluid surge during shifts, making gear changes less abrupt for comfort.
Overall, the valve body works as a hydraulic computer. It takes input (fluid pressure signals or electronic signals) and produces an output (gear change) by directing fluid. Despite the complexity, it’s helpful to remember a simple image: the valve body is like a maze of tiny tunnels where each tunnel leads to a specific gear. By filling one tunnel with fluid, that gear engages. By emptying it, the gear disengages. This is happening continuously as you drive, ensuring the engine’s power is delivered through the right gear at the right time for smooth acceleration or deceleration.
Symptoms of a faulty valve body
When a valve body isn’t working right, the car will usually start to shift abnormally. Here are common signs of valve body problems:
-
Harsh or Jerky Shifts: Gear changes might feel rough, with the car banging or jolting into the next gear instead of shifting smoothly.
-
Delayed or Missing Shifts: You might press the gas and the engine revs high, but the car hesitates to shift up, or there’s a long delay when shifting from Park into Drive. The transmission may even fail to go into a certain gear at all.
-
Gear Slippage: The transmission slips out of gear unexpectedly or struggles to stay in gear (for example, it might upshift then quickly downshift, or you feel a loss of power as if it’s not firmly in any gear).
-
Wrong Gear Changes: The car may shift at inappropriate times — such as going into too high or too low a gear for your speed — often due to valves sticking or mis-communicating. This erratic shifting is a red flag for valve body or solenoid issues.
-
Check Engine Light: Many vehicles will trigger a warning light if the transmission isn’t behaving properly. A bad valve body can cause fault codes that turn on the Check Engine Light (or a specific transmission warning light). If this light accompanies shift problems, the valve body could be the culprit.
If you experience these symptoms, it’s important to have the transmission inspected by a qualified technician. Continuing to drive with a malfunctioning valve body can lead to further transmission damage. Often, what might start as a sticky valve or minor issue can escalate to burned clutches or other failures if not addressed.
Maintenance and care
The best way to avoid valve body problems is through regular transmission maintenance. That means changing the transmission fluid at the intervals recommended by your vehicle’s manufacturer. Fresh fluid helps because it keeps the internal passages clean and maintains the correct fluid pressure properties. Over time, fluid breaks down and gets contaminated; replacing it can prevent sludge and debris from clogging the valve body’s narrow passages. It’s also wise to ensure the transmission doesn’t overheat — if you tow heavy loads or drive in very hot conditions (like Dubai’s climate), consider adding a transmission cooler or servicing the fluid more frequently, since heat can accelerate wear.
In case of a valve body failure or excessive wear, repair options include rebuilding or replacing the valve body. Mechanics might try to clean the valve body or replace individual solenoids if they are faulty. In more severe cases, the entire valve body is swapped with a new or remanufactured unit. This can be costly, but it’s often less expensive than replacing the whole transmission. Keep in mind, a valve body issue sometimes indicates other internal transmission wear, so a thorough diagnosis is important. On the bright side, valve body problems are not extremely common compared to other issues — they are built robustly. With proper fluid maintenance and sensible driving, most valve bodies last the lifetime of the transmission.
Key Takeaways on Valve Bodies
The valve body may be out of sight, tucked inside your vehicle’s transmission, but it plays a central role in how your car drives. It is the component that automatically selects and shifts gears by intelligently directing fluid pressure, essentially doing the thinking that a driver would do in a manual car. Without it, an automatic transmission simply wouldn’t be automatic. We’ve learned that the valve body is a complex assembly — part hydraulic and (in modern cars) part electronic — that serves as the transmission’s “brain” or control center. It ensures gear changes happen at the right moments for smooth acceleration, deceleration, and overall driving comfort.
For everyday drivers, you don’t need to adjust or interact with the valve body, but knowing about it helps you understand why transmission fluid maintenance is important and what might be happening if your car starts shifting strangely. A healthy valve body contributes to a long-lasting, smooth-shifting transmission, especially in the stop-and-go conditions many drivers face daily. In summary, the transmission’s valve body is a remarkable piece of engineering that handles the hard work of gear shifting behind the scenes. Treat your transmission well — check the fluid and service it as recommended — and the valve body will continue to do its job, giving you a hassle-free and comfortable ride for miles to come.
